Overcurrent Breaker Test
![](/fileadmin/_processed_/1/0/csm_Overcurrent1_b4abbe6d01.png)
![](/fileadmin/_processed_/d/1/csm_Overcurrent2_0817442525.jpg)

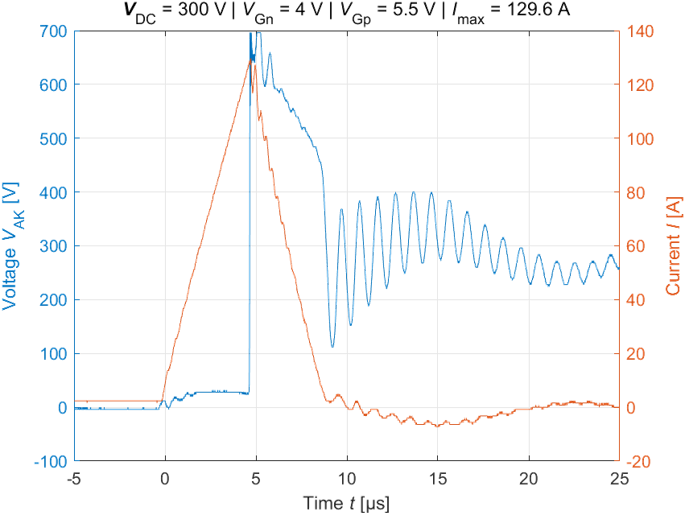

Test of dc overcurrent breaker (semiconductor based)
- dc voltage up to 300 V – 10 A continuous current (limited by source)
- Hight current at switching event due to buffer capacitor
- “Short circuit” with air coils from a few µH up to ~100 µH
- Fully automated control and evaluation
