Laboratory

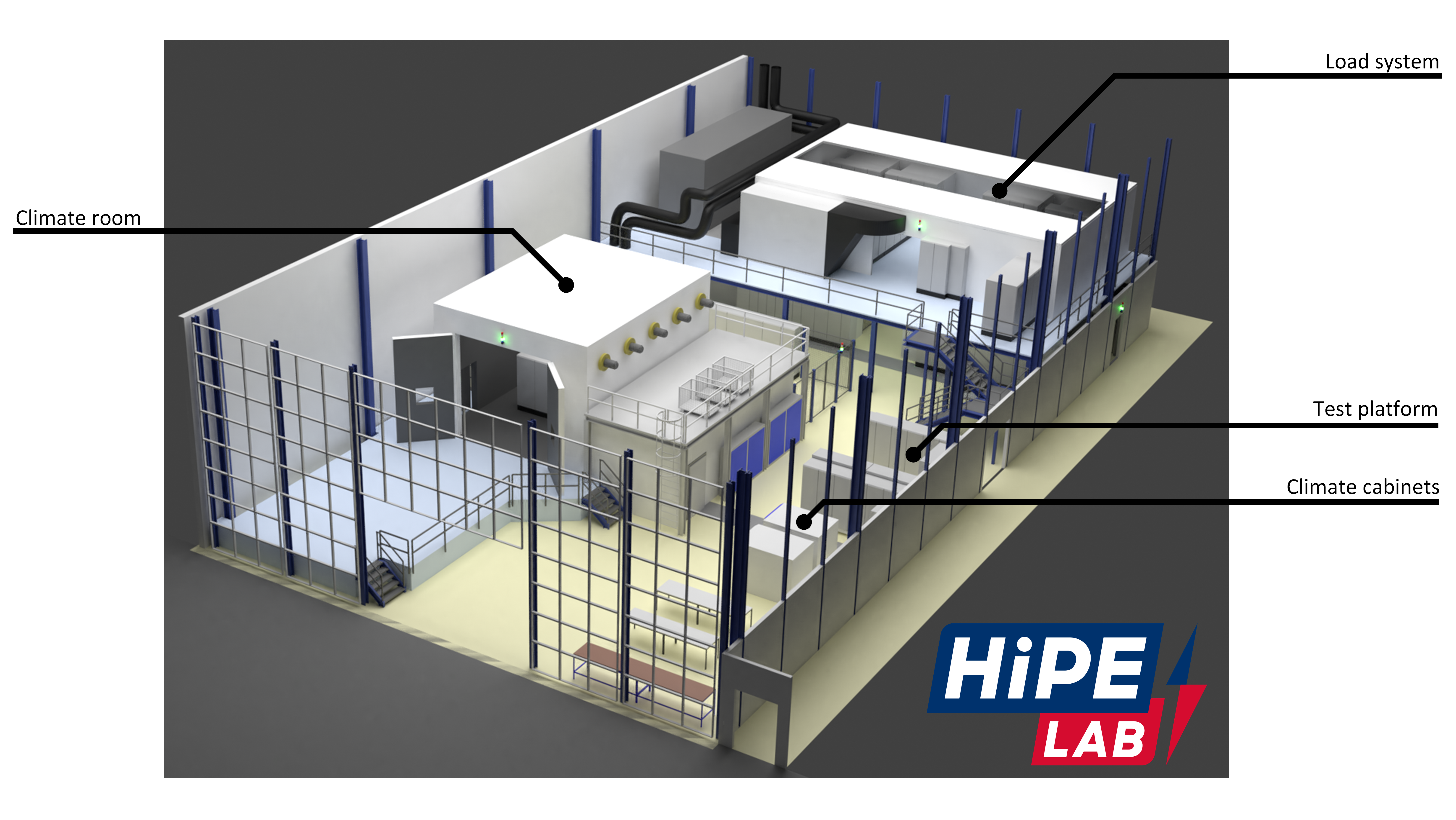

The laboratory equipment of the HiPE-LAB at the University of Bremen, consisting of the loading facility, the preliminary test platform and climate climate chambers. Extensive measurement technology and sensors are available for measuring voltages, currents, temperatures, relative humidity and air flow. For further information please contact us.
© University of Bremen - Dr.-Ing. W. Holzke

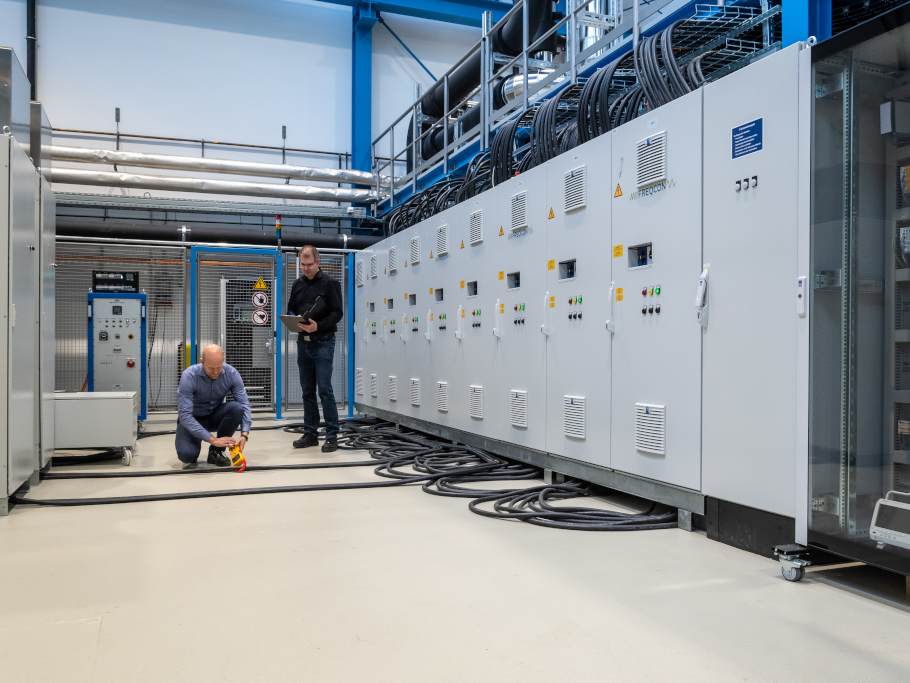

Load system and preliminary test platform
© University of Bremen
Technical specifications - Load system
| Power range | 10,8 MVA (4x 2,7 MVA) |
| Voltage range | 0 to 1.000 V AC |
| Current range | up to 9.000 A AC (4 x 2.250 A AC) |
| Frequency range | 0 to 70 Hz, when operated with transformers 45 to 70 Hz |
Electrical system | IT system (isolated against earth, other electrical systems on request) |
© University of Bremen

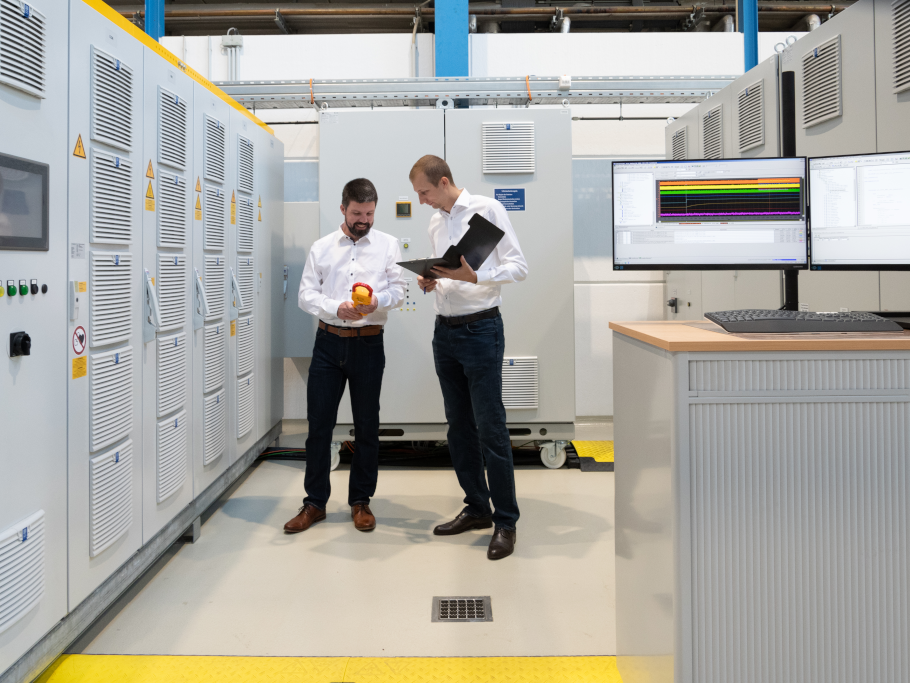

Technical specification - Preliminary test plattform
| Power range | 300 kVA |
| Funktional range | Identical to the load system |
| Application | Model development and low power testing |
Climate chambers
© University of Bremen
Technical specification - Climate room
| Temperature range | -40 °C to +120 °C |
| Relative humidity range | 10% to 95% relative humidity at +10 °C to +95 °C |
| Testing room (l x b x h) | 7,5 m x 5,3 m x 4,3 m |
| Cooling water connection for device under test (DUT) | 300 kW, supply temperature +16 °C to +60 °C |

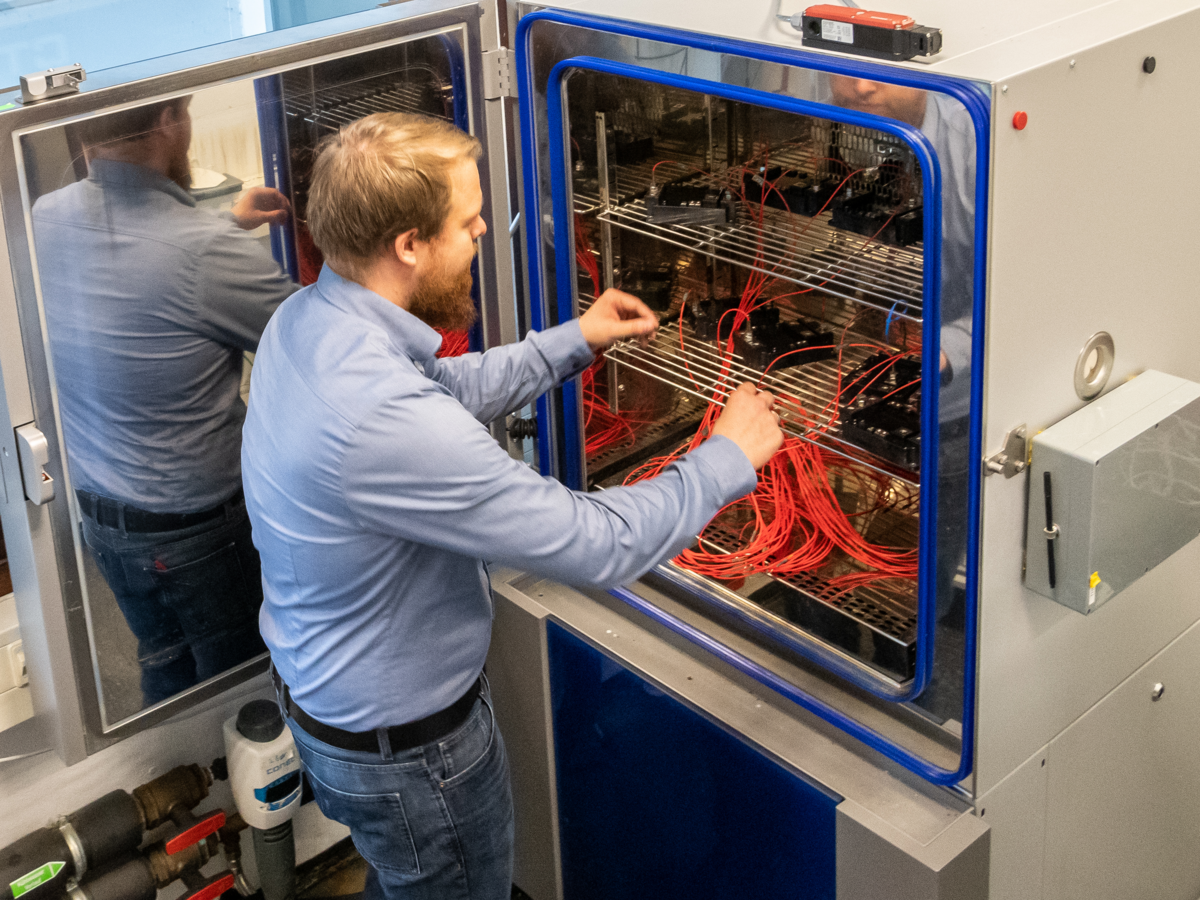

![[Translate to English:] Sicht auf einen geöffneten Klimaschrank.](/fileadmin/_processed_/0/e/csm_Klimaschrank-DSC_0609_f5765511b4.png)
© University of Bremen
Technical specifications - Climate cabinets
Temperature range | -70 °C to +180 °C |
| Relative humidity range | 10 % to 98 % relative humidity |
| Testing room | up to 1000 l |
