Allgemeine Informationen

• Untersuchungsgebiete

  Other
• Techniken

  Space Environment Testing

• Hersteller

  DLR Bremen, Institute of Space Systems
• Herstellungsjahr

  2009
• Gemessene Größe

  Alteration of material properties due to exposure to vacuum, proton, electron and electromagnetic radiation is observed.
• Hauptanwendung

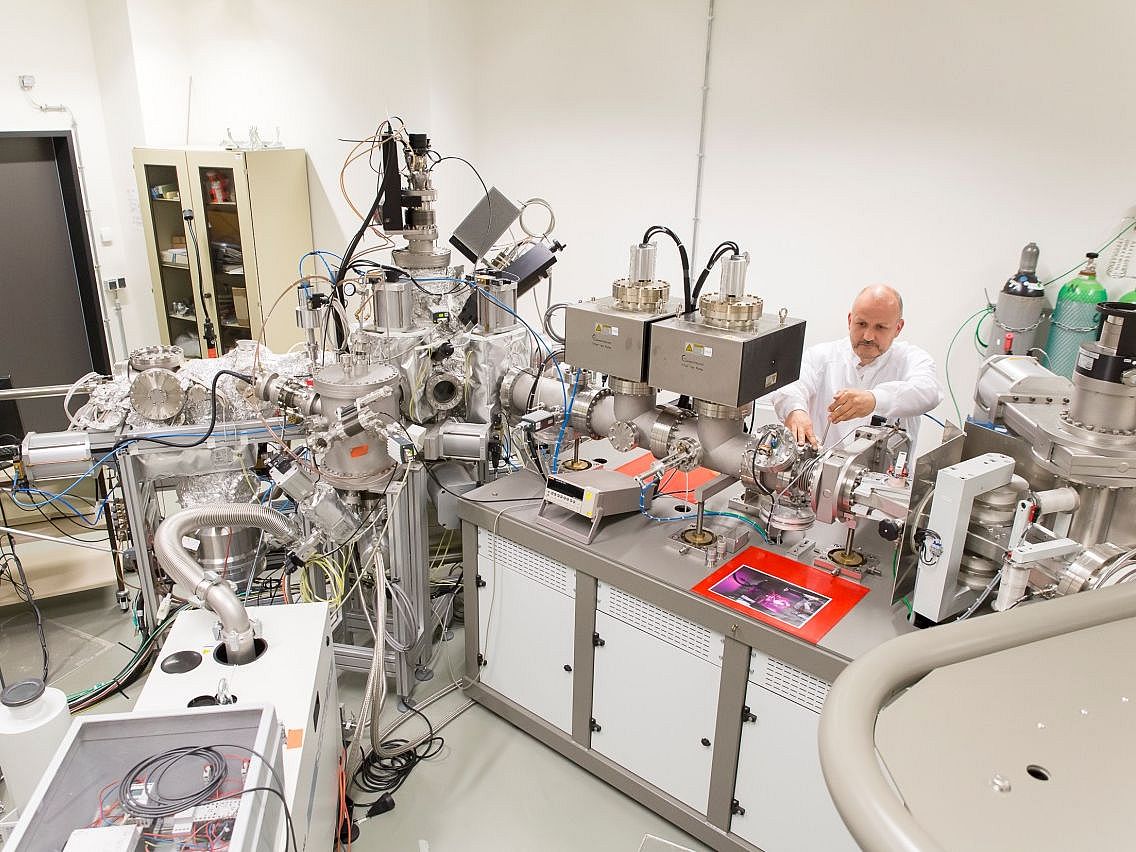

  The Complex Irradiation Facility (CIF) is used to test and qualify functional surfaces for space application or other applications with similar environments. It simulates the space environment conditions such as vacuum, protons, electron and electromagnetic radiation.
• In-situ, real-time kompatibel

  Ja
• Korrelierter Arbeitsablauf verfügbar

  Ja

Spezifikationen des Geräts

• Technische Aspkete

  The Complex Irradiation Facility (CIF) is used for experimental research into the degradation of materials under simulated space radiation conditions as those found beyond that of low Earth orbits. Three sources of light and a proton/electron dual beam accelerator are connected to an irradiation chamber where the samples can be exposed to a precisely defined dose of electromagnetic radiation (IR, visible light, UV and VUV), as well as electrons and protons. The energy from the protons and electrons, which can amount up to 100 keV, enables a penetration depth of a few micrometres, depending on the sample. This allows the in-depth study of the main degradation effects on the sample's surface area. The facility is set up with ultra-high vacuum technology performed with metal gaskets without  organic components, such as artificial gaskets and pump oil. This prevents self-contamination, which could influence the results of the experiments. Further information and technical data can be found at https://www.dlr.de/irs/en/desktopdefault.aspx/tabid-11245/ .

• In-situ-Möglichkeiten

  Optical camera observes material samples during irradiation, further a massspectrometer is available to observe components of outgassing substances.
• Korrelierter Arbeitsablauf

  The CIF can be combined with all techniques to investigate the surface properties of materials to observe the deteroriation after irradiation.
• Weitere Untersuchungsmöglichkeiten

  Also check https://www.dlr.de/irs/en/desktopdefault.aspx/tabid-11374/ for all test facilites of the Institute of Space Systems of the DLR Bremen.

Kontaktperson

• Anwendungswissenschaftler

  Thomas Renger
  -- , DLR
  Institute of Space Systems
  Telefonnummer +49 421 24420 1607
  thomas.rengerprotect me ?!dlrprotect me ?!.de
• Erik Klein
  Fachbereich 4 , DLR
  Institute of Space Systems
  Telefonnummer +49 421 24420 1142
  erik.kleinprotect me ?!uni-bremenprotect me ?!.de
• Führender Anwendungswissenschaftler

  Thomas Renger


Gerätestandort

• Gruppe

  Institute of Space Systems
• Fachbereich

  Fachbereich 4
• Institut (Außeruniversitär)

  DLR
