HiPE-LAB

Allgemeine Informationen

Untersuchungsgebiete
Other
Techniken
Power electronics testing
Hersteller
IALB
Herstellungsjahr
2021
Gemessene Größe
Temperature, relative humidity, airflow, current, voltage, power
Hauptanwendung
Multimodal lifetime tests (under climate and electrical conditions, destructive and non destructive) on power electronics.
In-situ, real-time kompatibel
Ja

Technische Aspkete

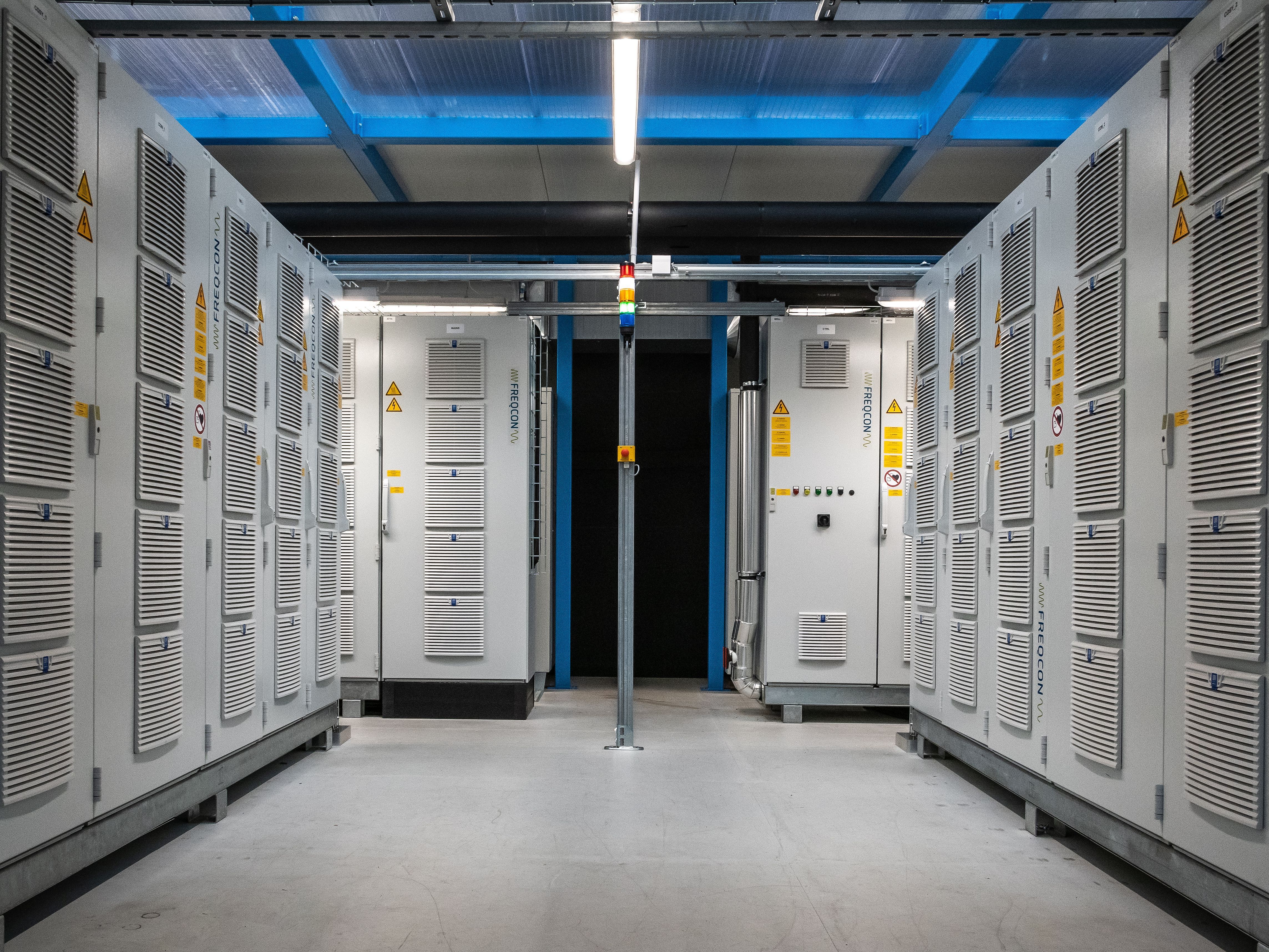

Electrical load system: Power range up to 10 MVA with a voltage range from 0 to 1,000 V AC, currents up to 9,000 A AC and a frequency range from 0 to 70 Hz.

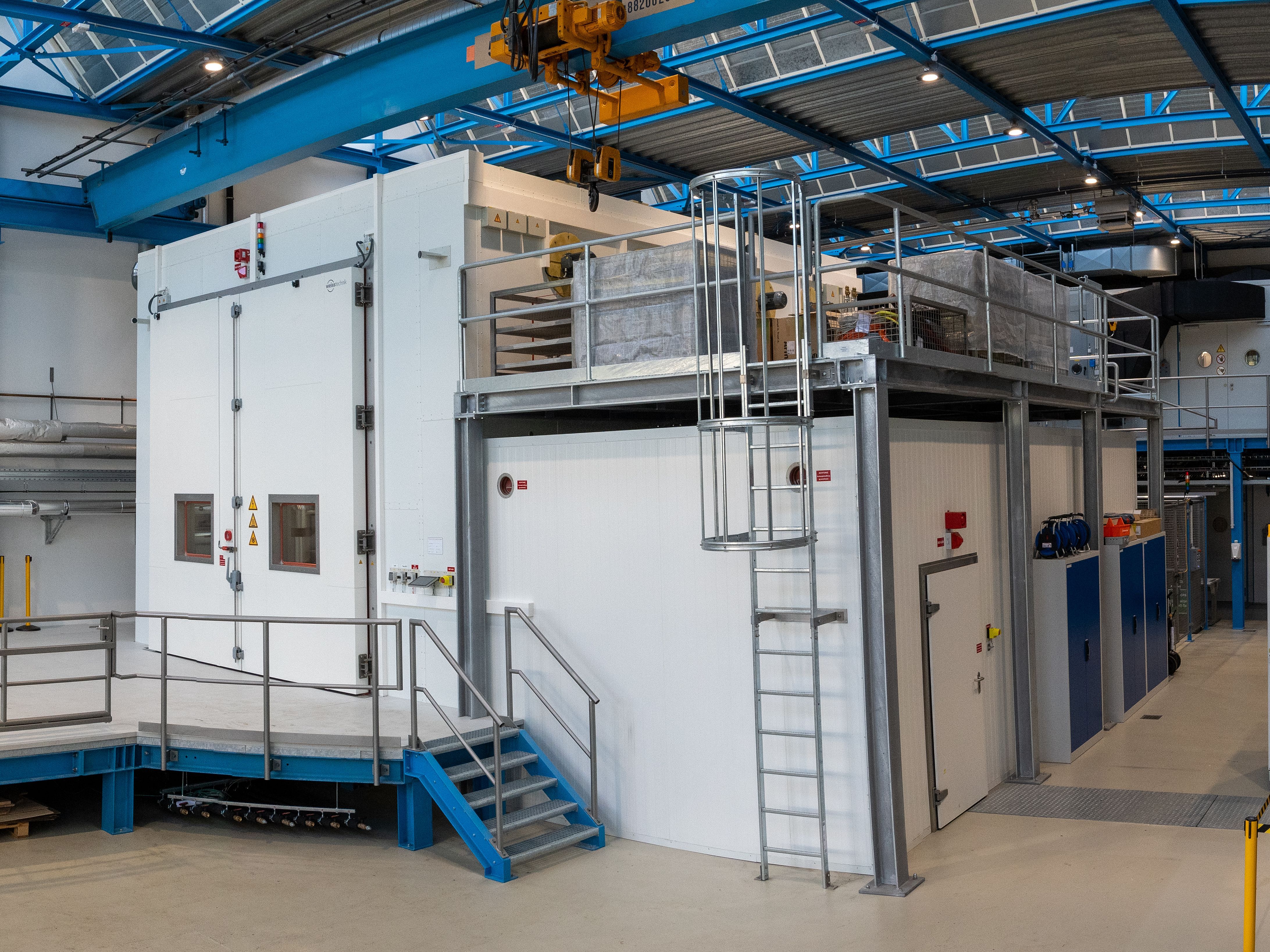

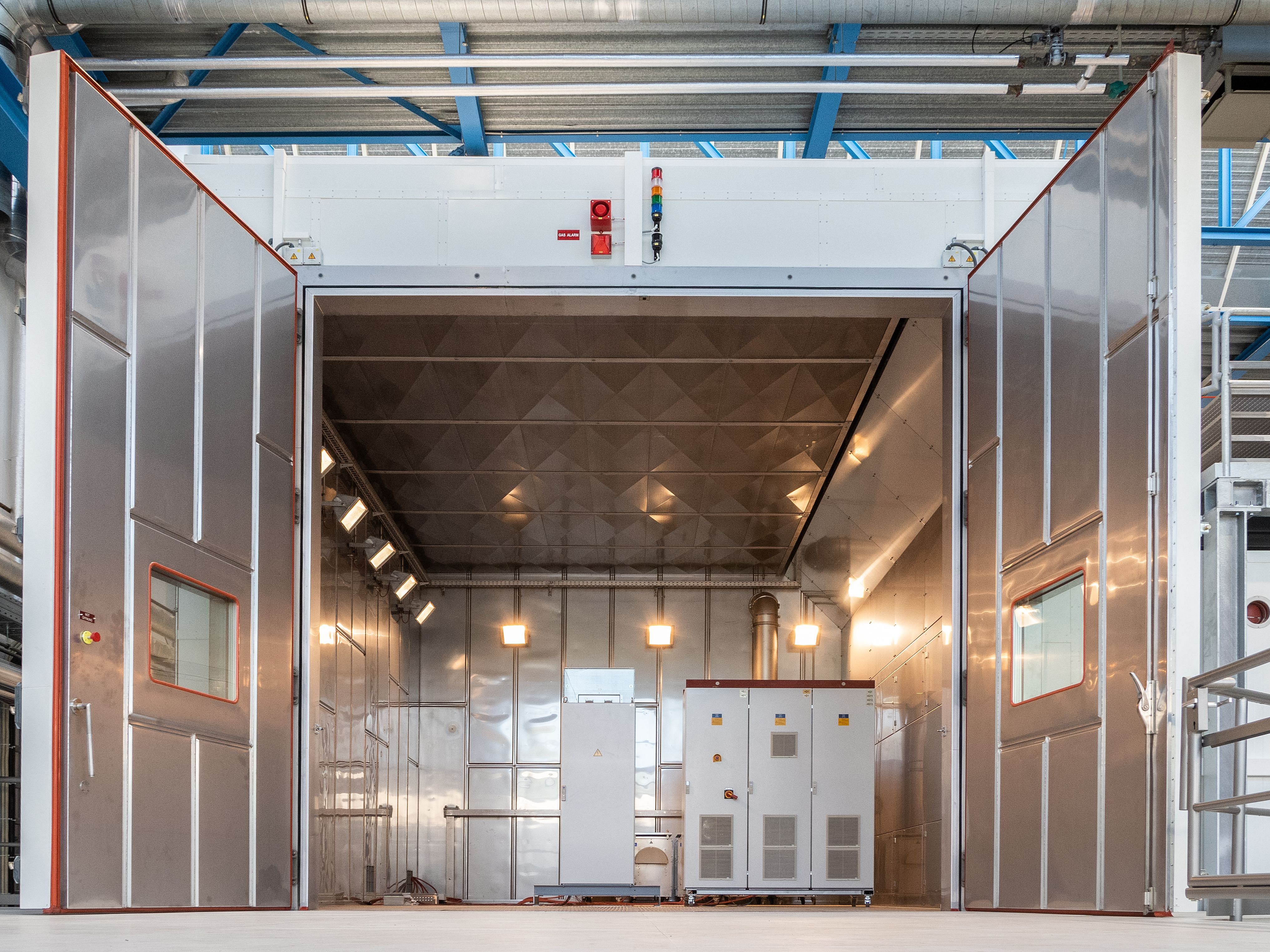

Climate room: Temperature range from -40 °C to +120 °C, 10 % to 95 % relative humidity at +10 °C to +95 °C, Test room (l x w x h) 7.5m x 5.3 m x 4.3 m, Cooling water supply temperature for the DUT from +16 °C to +60 °C.

Measurement system: Up to 72 channels with 2 MSamples/s for voltages and currents and up to 64 channels with 20 kSamples/s temperature, relative humidty and airflow. Fully automated tests due to an flexible and extendable controll system.
In-situ-Möglichkeiten
Temperature range from -40 °C to +120 °C; relative humidity 10 % to 95 % at +10 °C to +95 °C; Cooling water supply temperature for the DUT from +16 °C to +60 °C.
