VPN with Cisco Secure Client on Windows

Preliminary remark

These instructions were created for Windows 11.

However, the Cisco Secure Client also works on Windows 10 and the setup steps for Windows 10 should be very similar to the setup steps contained here.

The S-Mode of Windows 10/11 is not supported.

Troubleshooting help can be found below.



General note

Some restricted services of the University or the State and University Library can only be used when you are on campus, so that the device you use has an address from the area assigned to the University.

To access these services from home or on the road, you must install a so-called VPN client software (Cisco Secure Client) on your device once and establish a connection to the campus with the VPN client before each access to the restricted services. This means that you are "virtually" on campus and can use the services you are used to.

Please note the different types of tunnels and make sure you choose the correct tunnel.

The page vpn.uni-bremen.de is shown. In the lower half of the screen is an input form that asks for username and password.

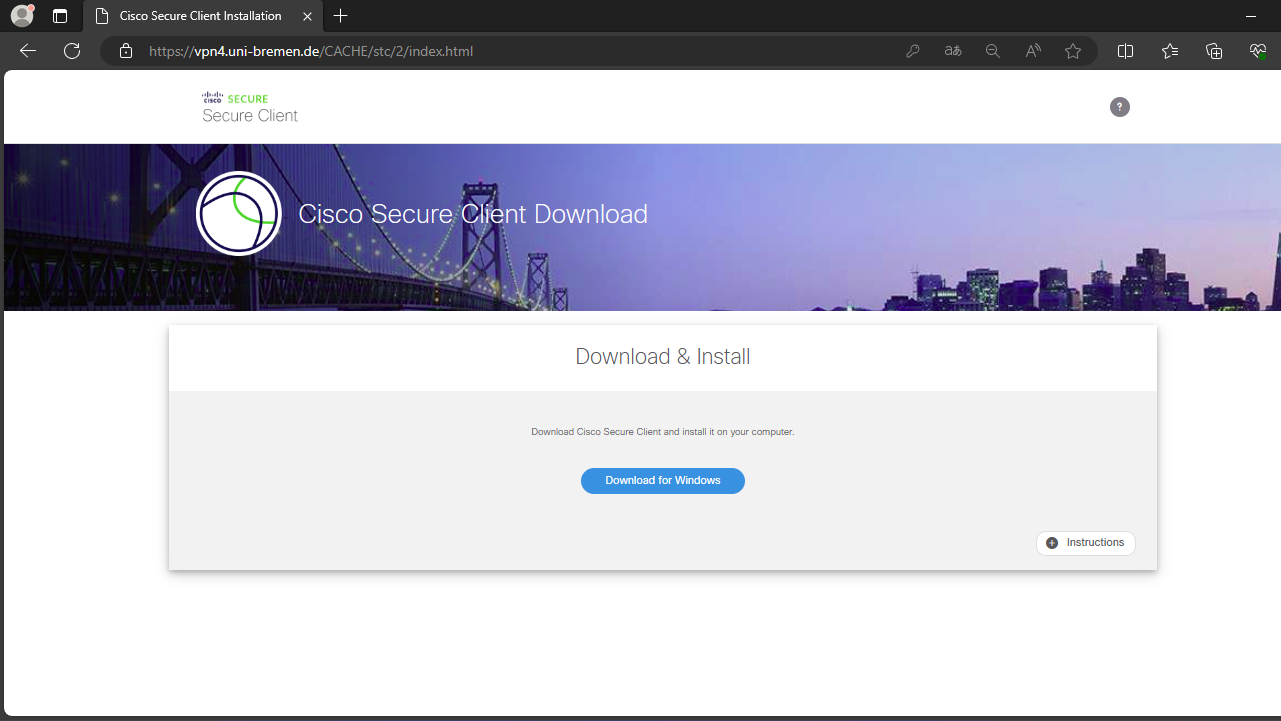

A browser window that shows the download page to download the VPN client. It has a button in the center that shows "Download for Windows".

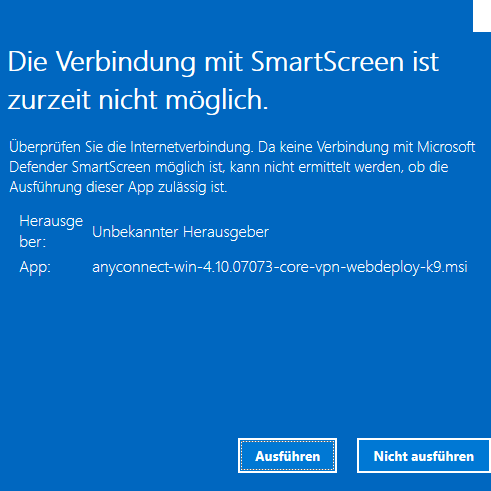

Der Windows Smartscreen Dialog wird angezeigt.

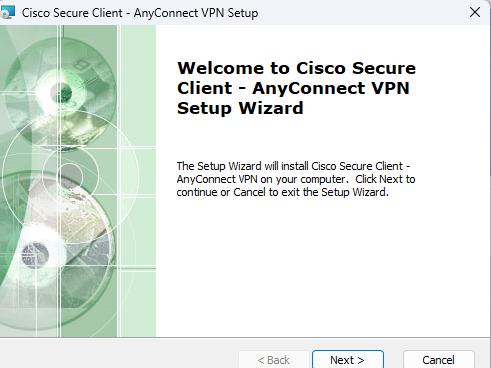

The main window of the install wizard is shown.

Initial setup - Step 1

Make sure that your device is connected to the internet. Open the website https://vpn.uni-bremen.de, log in with your university account and then download the installation file for the Cisco Secure Client. Then run the file.

If you have connected to the WLAN “Uni Bremen”, the Smart Screen will open first (blue screenshot). Here you must click on “Execute”.

In the Cisco Secure Client Installer welcome screen, click on “Next”.

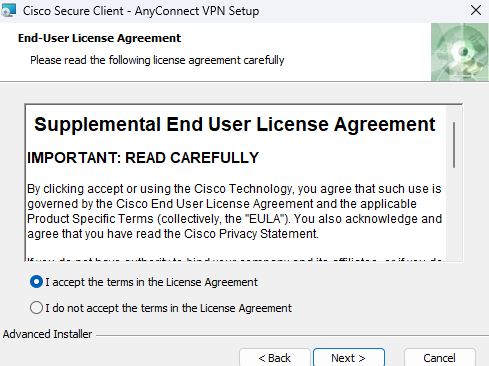

The install wizard window is shown. The current step wants you to accept the license agreement.

Initial setup - Step 2

Read the license terms and accept them if necessary by selecting “I accept the terms in the License Agreement” and then click on “Next”.

If you do not agree to the terms and conditions, it is unfortunately not possible to use the VPN service.

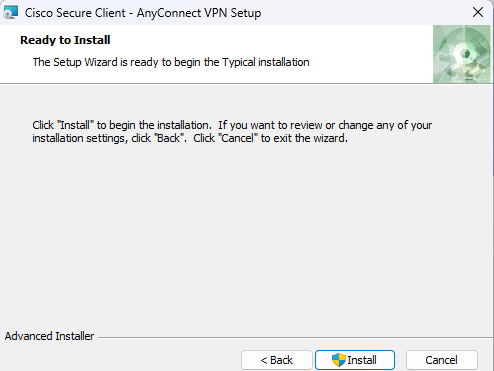

The step "Ready to install" of the install wizard is shown.

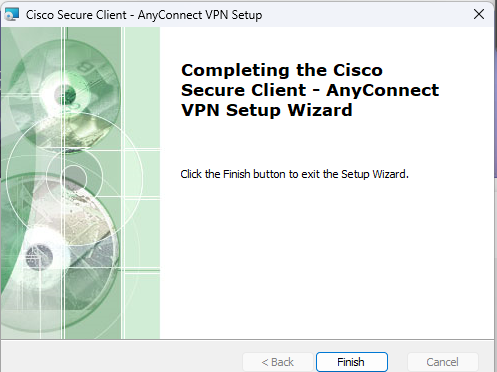

The installer says it is finished. You have to click on the "Finish" button.

Initial setup - Step 3

The software will then ask you once again whether you would like to start the installation. Confirm this by clicking on “Install”. If Windows then asks you whether you want to allow the program to make changes to your computer, confirm this too. You will need administrator rights for this. If you do not have these rights, please contact your local IT person.

The installation will then take place without any further action on your part. You can then close the installation program by clicking on “Finish”.

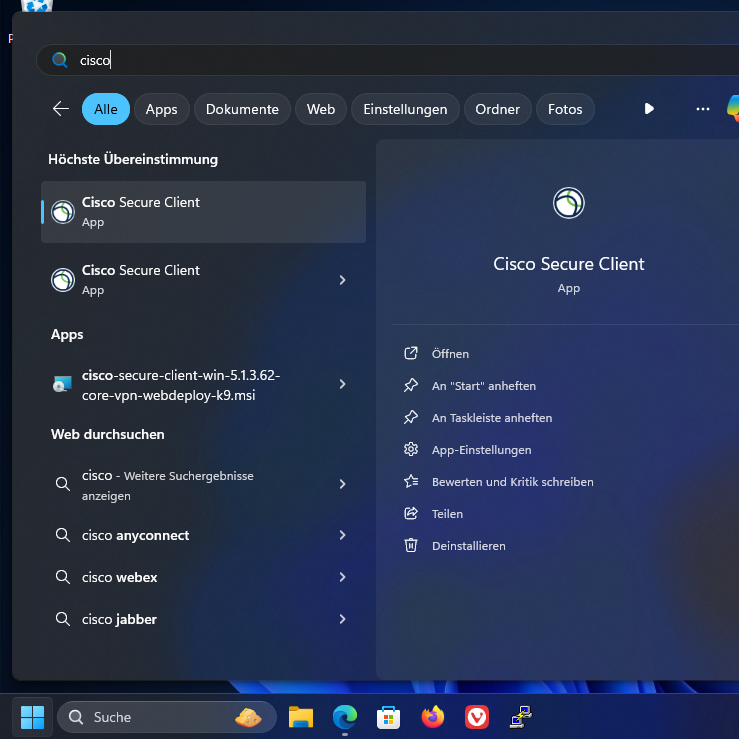

The Start menu is shown. The word "cisco" was entered. The Cisco Secure Client app is shown.

Initial Setup - Step 4

Click on the Cisco Secure Client icon in the taskbar. If the icon is not there, start the “Cisco Secure Client” software from the Start menu (via the Windows icon at the bottom left of the taskbar).

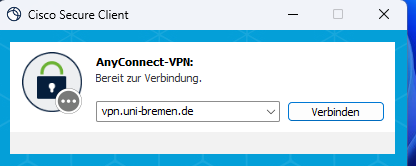

The main window of the Cisco Secure Client is shown. The input box has "vpn.uni-bremen.de" in it. To the right is a button "Connect".

Initial Setup - Step 5

Click on the cogwheel at the bottom left of the “Cisco Secure Client” window to access the settings.

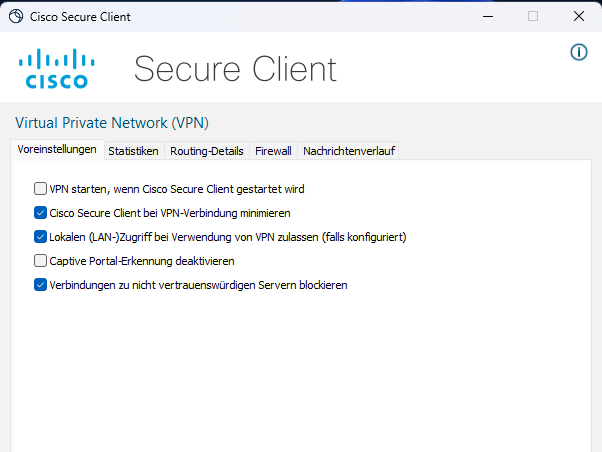

Initial setup - Step 6

In the “Preferences” tab, check the “Allow local (LAN) access when using VPN (if configured)” box if it is not already checked. This allows you to access resources in your local network (e.g. printers or file shares) even when the VPN connection is activated.

The Start menu is shown. The word "cisco" was entered. The Cisco Secure Client app is shown.

Connect - Step 1

Click on the “Cisco Secure Client” icon in the taskbar. If the icon is not there, start the “Cisco Secure Client” software from the Start menu (via the Windows icon at the bottom left of the taskbar).

The main window of the Cisco Secure Client is shown. The input box has "vpn.uni-bremen.de" in it. To the right is a button "Connect".

Connect - Step 2

Enter “vpn.uni-bremen.de” in the input box if it is not already filled in. Now click on “Connect”.

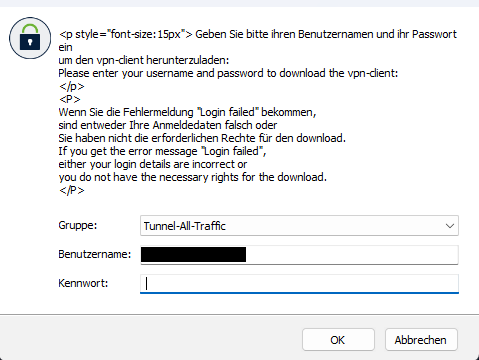

The login dialog of Cisco Secure Client is shown. A group selection is shown. Two input fields for Username and Password are shown.

Connect - Step 3

Now enter the access data for your university account in the form of username and password. The access data cannot be saved and must be re-entered each time you connect.

Finally, select the correct tunnel type under “Group” and confirm with “OK”. The program should now establish the connection.

The main window of Cisco Secure Client is shown. A text says "Connected to vpn.uni-bremen.de". A button with "Disconnect" to the right is shown.

Disconnect the VPN

If you no longer need the connection, click on the “Cisco Secure Client” icon in the taskbar again and select “Disconnect”.

Troubleshooting

I cannot download the installation file and get the message “Forbidden” instead

Not all university users can access the VPN service. In particular, alumni are excluded from using it.

If you are a regular member of the university (e.g. a regular student or employee) or an employee of the SuUB, please contact the account administration to have the assignment of your account checked.

During installation, the error message “The vpn client agent was unable to create the interprocess communication depot.” appears

This error message is triggered by activated Internet connection sharing. Deactivate the network adapter sharing in the adapter settings and try the installation again.

I have successfully established a VPN connection, but now I cannot use the library's services?

If you want to use services that are activated for the network area of the University of Bremen, but are not “hosted” in the university's network area (publishers are an example here), then you must change the group from “Tunnel-Uni-Bremen” to “Tunnel-all-Traffic” when establishing the connection. For a detailed explanation, please read the page VPN tunnel types.

ATTENTION: With this option, all data traffic is now routed through the tunnel. Please only leave the tunnel activated with this option as long as it is required for working.

I get the error message "The VPN connection failed due to unsuccessful domain name resolution."

Please make sure that the address "vpn.uni-bremen.de" is entered in the main window of the Cisco Secure Client.

The main window of the Cisco Secure Client is shown. The input box has "vpn.uni-bremen.de" in it. To the right is a button "Connect".

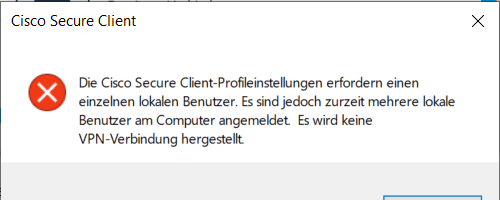

A window with an error message: The Cisco Secure Client profile settings require a single local user. However, multiple local users are currently logged on to the computer. No VPN connection is established.

I get the error message "The Cisco Secure Client profile settings require a single local user. However, multiple local users are currently logged on to the computer."

If you receive the error message "The Cisco Secure Client profile settings requires a single local user. However, multiple local users are currently logged on to the computer.", please do the following:

Log off other users on your computer. The connection should then work as usual.
The Cisco Secure Client only allows one logged-in user at a time.
